Features of in-line motor winch GME series
This is an electric winch developed by MAXPULL WINCH, which has the top marketshare in the safety net industry.
● Motor, reducer, and drum are independent structures making it easy to maintain.
● The motor cover can be easily removed.
● Remove the motor cover to easily access motor and gears. The gears are easy to clean, lubricate, and repair allowing for fast on-site recovery.
● The motor has a handle for manually releasing the brake so the suspended load can be lowered to a safe position even in emergencies such as power outages.

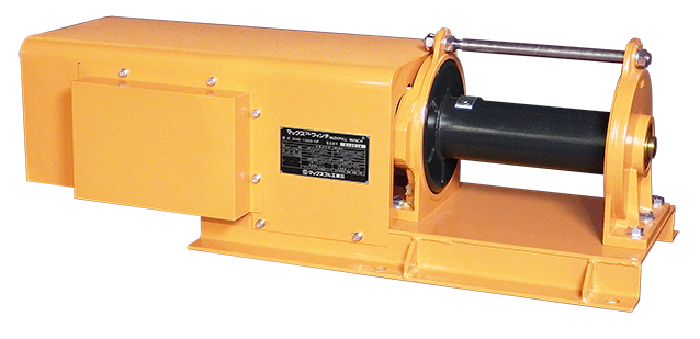

Model: GME-700-NP / GME-1300-NP
Exceptional durability and reliable safety
The reducer is the key to the winch and uses a specially heat treated spur gear based on MAXPULL’s proprietary transition method. This winch exhibits excellent durability even under long-term continuous use. In addition, the electromagnetic brake has a special electromagnetic circuit can instantly brake and release the winch even while in operation. Its high reliability has been proven by 1 million times of durability tests and long-term field tests. All of MAXPULL’s products use our highly reliable original safety design.
How to set the wire rope
Access to motor and gears
Example of lifting of ball net for golf driving range
In-line motor winch GME series product list
Model: GME-700-NP
| Model | GME-700-NP | |
|---|---|---|
| Frequency | 50Hz | 60Hz |
| Load Rating | 680kgf (1400lbs) | 560kgf (1200lbs) |
| Line speed | 3rd Layer：4.2 m/min (13.8 ft/min) 5th Layer：5.3 m/min (17.4 ft/min) |
3rd Layer：5.0 m/min (16.4 ft/min) 5th Layer：6.4 m/min (21.0 ft/min) |
| Drum Capacity | φ9mmx50m (164.0 ft) | |
| Applicable Wire Rope | φ9mm (6XFi(29)) (Japanese Industrial Standards) | |
| Gear Ratio | 142.6 : 1 | |
| Motor type | Totally enclosed external fan type | |
| Output | 0.75 kW | |
| Number of poles | 4 P | |
| Voltage / current | Three-phase AC200V 50Hz 3.6A | Three-phase AC200V 60Hz 3.2A |
| Insulation | Class B | |
| Brake | Spring close type electromagnetic brake | |
| Braking rate | 150% or more | |
| Load time rate | S2 10minutes | |
| Control method | Indirect operation by control panel(refer to MECB series) | |
| Own weight | 80.0 kg (176.4lbs) |
Model: GME-1300-NP
| Model | GME-1300-NP | |
|---|---|---|
| Frequency | 50Hz | 60Hz |
| Load Rating | 1300kgf (2800lbs) | 1100kgf (2400lbs) |
| Line speed | 3rd Layer：4.4 m/min (14.4 ft/min) 5th Layer：5.5 m/min (18.0 ft/min) |
3rd Layer：5.2 m/min (17.1 ft/min) 5th Layer：6.6 m/min (21.7 ft/min) |
| Drum Capacity | φ9mmx50m (164.0 ft) | |
| Applicable Wire Rope | φ9mm (6XFi(29)) (Japanese Industrial Standards) | |
| Gear Ratio | 140.0 : 1 | |
| Motor type | Totally enclosed external fan type | |
| Output | 1.5 kW | |
| Number of poles | 4 P | |
| Voltage / current | Three-phase AC200V 50Hz 6.9A | Three-phase AC200V 60Hz 6.1A |
| Insulation | Class F | |
| Brake | Spring close type electromagnetic brake | |
| Braking rate | 150% or more | |
| Load time rate | Continuous | |
| Control method | Indirect operation by control panel(refer to MECB series) | |
| Own weight | 83.0 kg (183.0lbs) |
