Mini Reciprocating Traction Endless Electric Winches: Model EMX

Features of mini reciprocating traction endless winch EMX series

Reciprocating traction endless electric winch with light tensile force from strong customer requests.
● Stable reciprocating traction force is realized by a single unit with two drums equipped with special wire rope grooves designed with the optimum coefficient of friction.
● Two wire retainers set up for each drum prevents slack or irregular winding of wire ropes.
● The wire rope can be wound up from any point with the “openable side frame”.
● Depending on the purpose of the use, the winch enables lifting work that requires reciprocating traction, one-way towing in each direction, and forced descent.
● Equipped of a switch box with built-in receiver and transmitter, the winch can be operated from a distance of 30m if there are no obstacles.
● 100V power supply allows immediate operation.
● This winch is equipped with a built-in inverter, variable speed and electronic thermal.
● Limit switches can be connected by external limit terminals.
● Motor main switch and switch box achieve protection class IP65.

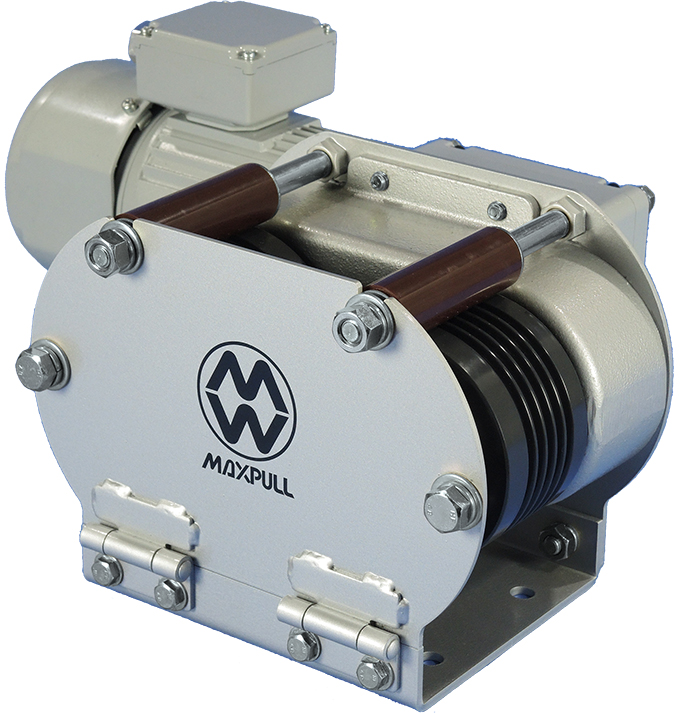

Model: EMX-150

EMX-150 type product configuration

・3m of power cable on primary side and 3m of power cable on secondary side are included with this product as accessories.
・If you want to change the power supply to three-phase AC200V, please consult us.

 Two drums

 Wire rope can be pulled out in any direction.

 Switch box

 A winch can be operated from a distance.

 If the radio waves are cut off, the winch will automatically stop for safety.

 Equipped with a damper that prevents transmitter damage.

Example of EMX series usage site

PageTop▲

Mini reciprocating traction endless winch EMX series product list

Introduction to list of products.

Model: EMX-150

Model: EMX-150
Model EMX-150
Frequency 50Hz 60Hz
Load Rating 150kgf (330lbs) 150kgf (330lbs)
Line speed 4.7 m/min (15.4 ft/min) 5.7 m/min (18.7 ft/min)
Line speed (during operation by switch box) 0.57 to 5.7m/min (1.87 to 18.7 ft/min) 0.57 to 5.7m/min (1.87 to 18.7 ft/min)
Applicable Wire Rope φ6mm (6X24) (Japanese Industrial Standards)
Gear Ratio 106.7 : 1
Motor type Totally enclosed external fan type
Output 0.2 kW
Number of poles 4P
Motor power Three-phase  AC200V
Insulation Class B
Brake Spring close type electromagnetic brake
Braking rate 150% or more
Load time rate Continuous
Control method Radio control
Own weight (only main unit) 34.0 kg (75.0lbs)
Main power of switch box Single-phase AC100V
