Features of reciprocating traction endless winch EME series
This is a breakthrough reciprocating traction endless electric winch equipped with original functions using MAXPULL’s unique experience and know-how.
●Two drums with special wire rope grooves designed for optimum coefficient of friction provide stable reciprocating traction force in a single unit.
●Two wire retainers set up for each drum prevents slack or irregular winding of wire ropes.
●The wire rope can be wound up from any point with the “openable side frame”.
● Dependng on the purpose, it is possible to tow back and forth in each direction, tow one way, or lifting with forced descent.
Model: EME-400 / EME-700 / EME-1300
A wire rope can be easily hooked to the drum
Wire rope can be pulled out in any direction
Procedure for installing the wire rope

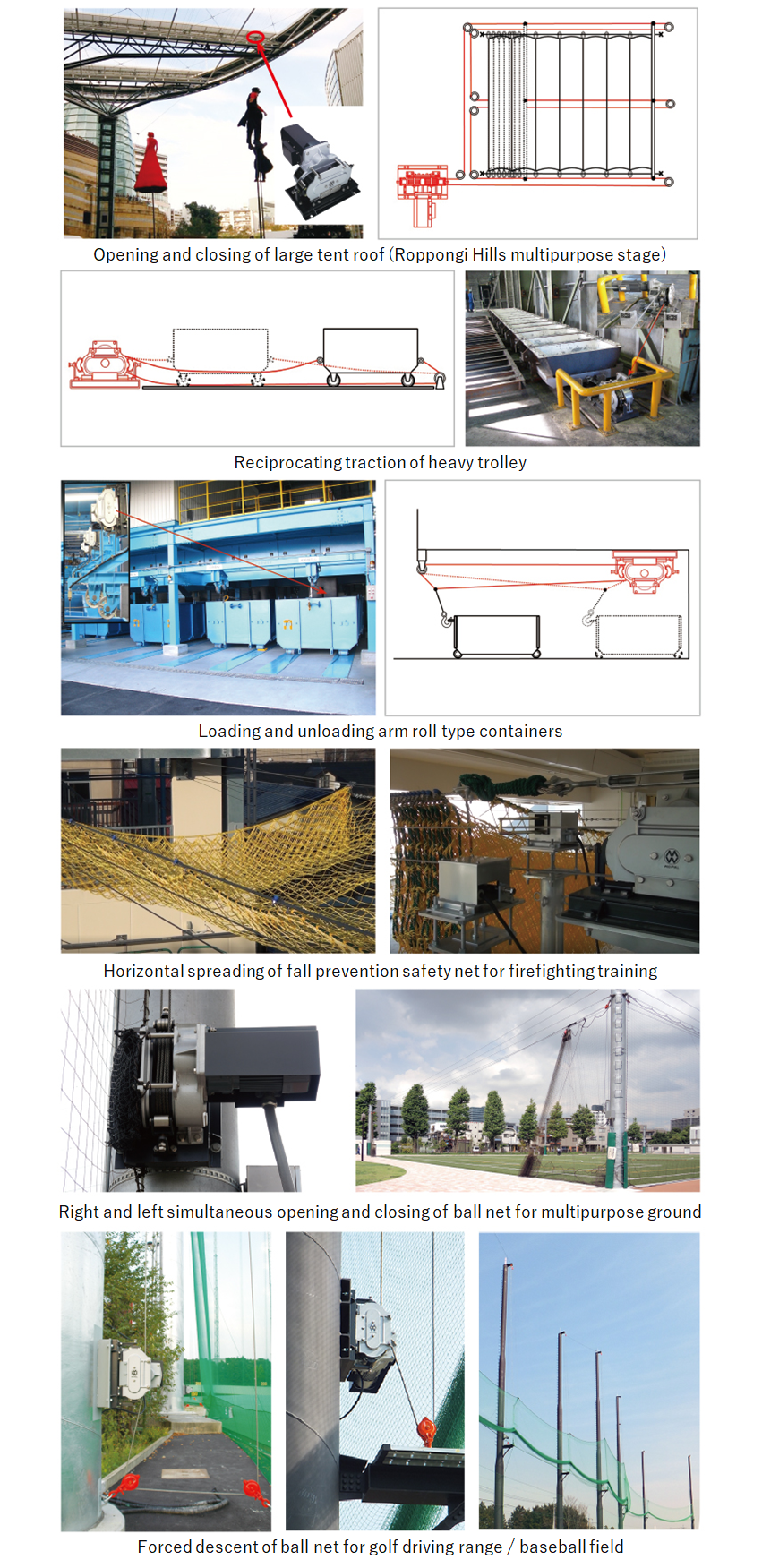

EME application (example of use)
Reciprocating traction endless winch EME series product list
Introduction to list of products.
Model: EME-400
| Model | EME-400 | |
|---|---|---|
| Frequency | 50Hz | 60Hz |
| Load Rating | 360kgf (790lbs) | 300kgf (660lbs) |
| Line speed | 5.3 m/min (17.4 ft/min) | 6.4 m/min (21.0 ft/min) |
| Applicable Wire Rope | φ8mm (6XFi(29)) (Japanese Industrial Standards) | |
| Gear Ratio | 114 : 1 | |
| Motor type | Totally enclosed external fan type | |
| Output | 0.4 kW | |
| Number of poles | 4 P | |
| Voltage / current | Three-phase AC200V 50Hz 2.4A | Three-phase AC200V 60Hz 2.1A |
| Insulation | Class E | |
| Brake | Spring close type electromagnetic brake | |
| Braking rate | 150% or more | |
| Load time rate | Continuous | |
| Control method | Indirect operation by control panel(refer to MECB series) | |
| Own weight | 77.0 kg (169.8lbs) |
Model: EME-700
| Model | EME-700 | |
|---|---|---|
| Frequency | 50Hz | 60Hz |
| Load Rating | 670kgf (1400lbs) | 550kgf (1200lbs) |
| Line speed | 5.7 m/min (18.7 ft/min) | 6.8 m/min (22.3 ft/min) |
| Applicable Wire Rope | φ9mm (6XFi(29)) (Japanese Industrial Standards) | |
| Gear Ratio | 108 : 1 | |
| Motor type | Totally enclosed external fan type | |
| Output | 0.74 kW | |
| Number of poles | 4 P | |
| Voltage / current | Three-phase AC200V 50Hz 3.9A | Three-phase AC200V 60Hz 3.4A |
| Insulation | Class E | |
| Brake | Spring close type electromagnetic brake | |
| Braking rate | 150% or more | |
| Load time rate | Continuous | |
| Control method | Indirect operation by control panel(refer to MECB series) | |
| Own weight | 81.0 kg (178.6lbs) |
Model: EME-1300
| Model | EME-1300 | |
|---|---|---|
| Frequency | 50Hz | 60Hz |
| Load Rating | 1300kgf (2800lbs) | 1100kgf (2400lbs) |
| Line speed | 5.59 m/min (18.3 ft/min) | 6.75 m/min (22.1 ft/min) |
| Applicable Wire Rope | φ10mm Steel Core Wire Rope (Japanese Industrial Standards) | |
| Gear Ratio | 129 : 1 | |
| Motor type | Totally enclosed external fan type | |
| Output | 1.5 kW | |
| Number of poles | 4 P | |
| Voltage / current | Three-phase AC200V 50Hz 7.2A | Three-phase AC200V 60Hz 6.8A |
| Insulation | Class E | |
| Brake | Spring close type electromagnetic brake | |
| Braking rate | 150% or more | |
| Load time rate | S2 30 minutes | |
| Control method | Indirect operation by control panel(refer to MECB series) | |
| Own weight | 120.0 kg (264.6lbs) |
