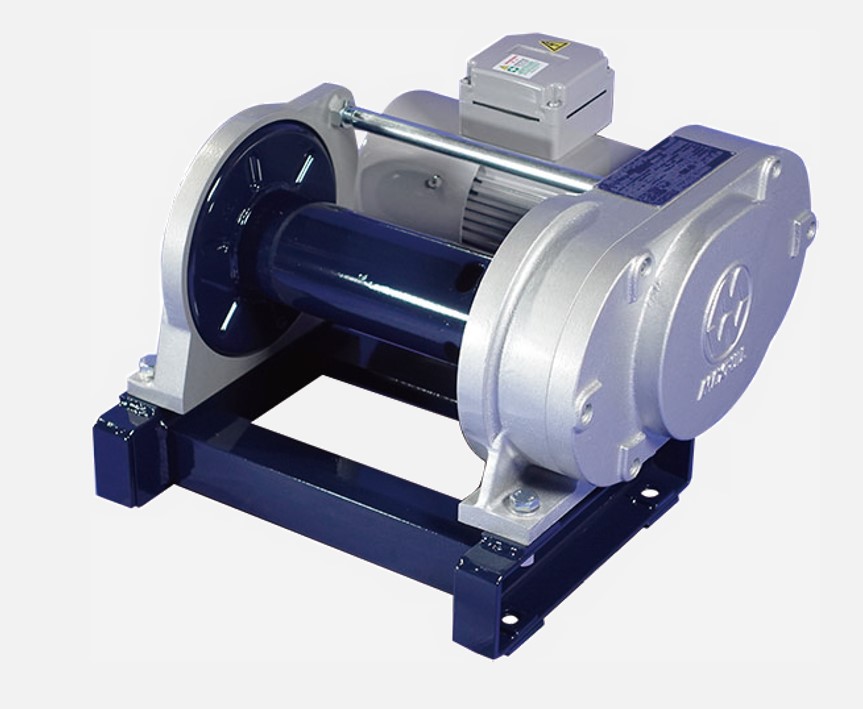

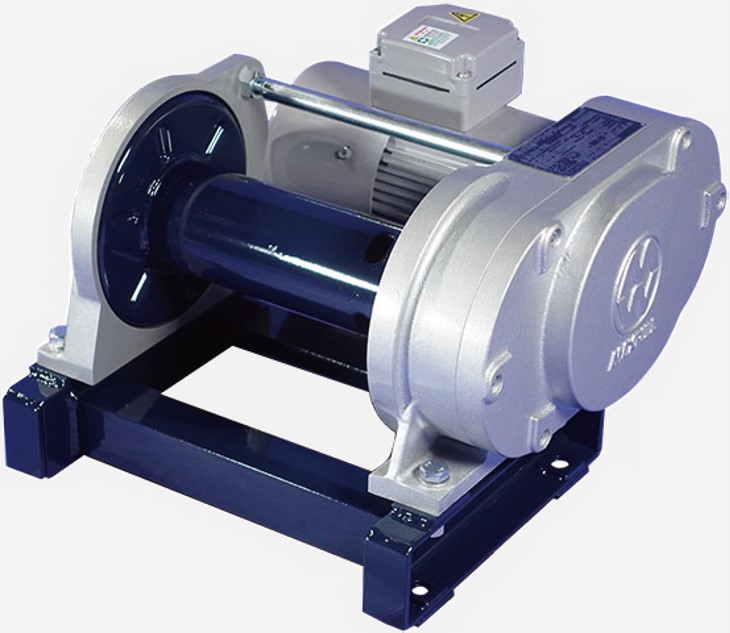

Features of BMW Air three-phase 200V series
This is a parallel type electric winch equipped with three-phase 200V specifications.
● The parallel type, which has two rows of the motor and drum sections, is compact and can be installed in narrow spaces.
● A frame of lightweight and robust aluminum alloy casting is used. It has great design and functionality such as dust and rust resistence, drip-proof and quietness.
● The fan-integrated motor enables operation for a rated time of 30 minutes.
● In the event of a power failure or other emergency, a manual brake release device can be used to safely lower the suspended load.● A high-performance electromagnetic brake is used; therefore, the braking power is extremely high making it effective even for delicate work.
● This winch uses industrial three-phase 200V.
Model: BMW-201 Air / BMW-202 Air / BMW-203 Air / BMW-301 Air / BMW-302 Air / BMW-303 Air
This is an electric winch equipped with an outdoor motor in parallel with the drum. A precisely designed reduction gear provides strong and stable traction. In addition, special heat treatment is applied to the aluminum alloy casting making it a much lighter and smaller than conventional products. It is dust and rust resistent, rain-proof, and can be installed in small spaces. The standard range of 0.4 kw and 0.75 kw three-phase 200 V models for industrial use is also available, so you can select the most suitable model for any application at a low cost.
Excellent compactness
The parallel type, which has two rows of the motor and drum sections, is compact and can be installed in narrow spaces.
Exceptional durability
In addition to using an outdoor motor, the reduction mechanism is rust-resistant and the frame is made of lightweight aluminum alloy casting. This product has high self-cooling properties and good heat dissipation making it safe for rain, wind, and dust. The sound is also quiet.。
Reliable safety
It uses MAXPULL’s original high-performance electromagnetic brake developed jointly with a motor manufacturer so it has extremely high braking force and it is effective even for detailed work. In addition, the manual brake release device can safely lower a suspended load even if the winch stops working in an emergency such as a power outage. The wire rope is fixed to the drum with a double safety structure using a special drum that ensures unrestricted winding. Fixing the end of the wire rope to the drum can be easily done using a Hex key L-wrench. Please see the explanation diagram below. This MAXPULL original design ensures a highly reliable and safe product.
“4 features” of BMW Air three phase 200V series
How to set the wire rope
Example of BMW Air three-phase 200V series usage site
BMW Air three-phase 200V series product list
Model: BMW-201 Air
| Model | BMW-201 Air | |
|---|---|---|
| Frequency | 50Hz | 60Hz |
| Load Rating | 1st layer: 130kgf (280lbs) 3rd layer: 130kgf (280lbs) 5th layer: 110kgf (240lbs) |
1st layer: 110kgf (240lbs) 3rd layer: 110kgf (240lbs) 5th layer: 90kgf (190lbs) |
| Line Speed | 1st layer: 10.3 m/min (33.8 ft/min) 3rd layer: 12.9 m/min (42.3 ft/min) 5th layer: 15.5 m/min (50.9 ft/min) |
1st layer: 12.3 m/min (40.4 ft/min) 3rd layer: 15.4 m/min (50.5 ft/min) 5th layer: 18.6 m/min (61.0 ft/min) |
| Drum Capacity | 1st layer: φ6mmx11.0m (36.0 ft) 3rd layer: φ6mmx37.3m (122.3ft) 5th layer: φ6mmx69.0m (226.3ft) |
|
| Applicable Wire Rope | φ6mm (6X24) (Japanese Industrial Standards) | |
| Gear Ratio | 40.3 : 1 | |
| Motor type | Totally enclosed external fan type: Three-phase motor | |
| Output | 0.4 kW | |
| Number of poles | 4 P | |
| Voltage / Current | Three-phase AC200V 50Hz 2.70A | Three-phase AC200V 60Hz 2.43A |
| Insulation | Class F | |
| Brake | Spring close type electromagnetic brake | |
| Braking rate | 150% or more | |
| Load time rate | S2 30 minutes | |
| Control method | Direct operation by 2-point pushbutton switch (operation cable 2mm2 x 4 cores x 2.5m / power cable 2mm2 x 4 cores x 2.5m) | |
| Own weight | 47.0 kg (103.6lbs) |
Model: BMW-202 Air
| Model | BMW-202 Air | |
|---|---|---|
| Frequency | 50Hz | 60Hz |
| Load Rating | 1st layer: 210kgf (460lbs) 3rd layer: 210kgf (460lbs) 5th layer: 180kgf (390lbs) |
1st layer: 180kgf (390lbs) 3rd layer: 180kgf (390lbs) 5th layer: 150kgf (330lbs) |
| Line Speed | 1st layer: 6.5 m/min (21.3 ft/min) 3rd layer: 8.1 m/min (26.6 ft/min) 5th layer: 9.7 m/min (31.8 ft/min) |
1st layer: 7.7 m/min (25.3 ft/min) 3rd layer: 9.7 m/min (31.8 ft/min) 5th layer: 11.6 m/min (38.1 ft/min) |
| Drum Capacity | 1st layer: φ6mmx11.0m (36.0 ft) 3rd layer: φ6mmx37.3m (122.3ft) 5th layer: φ6mmx69.0m (226.3ft) |
|
| Applicable Wire Rope | φ6mm (6X24) (Japanese Industrial Standards) | |
| Gear Ratio | 64.5 : 1 | |
| Motor type | Totally enclosed external fan type: Three-phase motor | |
| Output | 0.4 kW | |
| Number of poles | 4 P | |
| Voltage / Current | Three-phase AC200V 50Hz 2.70A | Three-phase AC200V 60Hz 2.43A |
| Insulation | Class F | |
| Brake | Spring close type electromagnetic brake | |
| Braking rate | 150% or more | |
| Load time rate | S2 30 minutes | |
| Control method | Direct operation by 2-point pushbutton switch (operation cable 2mm2 x 4 cores x 2.5m / power cable 2mm2 x 4 cores x 2.5m) | |
| Own weight | 47.3 kg (104.3lbs) |
Model: BMW-203 Air
| Model | BMW-203 Air | |
|---|---|---|
| Frequency | 50Hz | 60Hz |
| Load Rating | 1st layer: 330kgf (720lbs) 3rd layer: 330kgf (720lbs) 5th layer: 280kgf (610lbs) |
1st layer: 270kgf (590lbs) 3rd layer: 270kgf (590lbs) 5th layer: 230kgf (500lbs) |
| Line Speed | 1st layer: 4.2 m/min (13.8 ft/min) 3rd layer: 5.3 m/min (17.4 ft/min) 5th layer: 6.3 m/min (20.7 ft/min) |
1st layer: 5.0 m/min (16.4 ft/min) 3rd layer: 6.3 m/min (20.7 ft/min) 5th layer: 7.6 m/min (24.9 ft/min) |
| Drum Capacity | 1st layer: φ6mmx11.0m (36.0 ft) 3rd layer: φ6mmx37.3m (122.3ft) 5th layer: φ6mmx69.0m (226.3ft) |
|
| Applicable Wire Rope | φ6mm (6X24) (Japanese Industrial Standards) | |
| Gear Ratio | 99.0 : 1 | |
| Motor type | Totally enclosed external fan type: Three-phase motor | |
| Output | 0.4 kW | |
| Number of poles | 4 P | |
| Voltage / Current | Three-phase AC200V 50Hz 2.70A | Three-phase AC200V 60Hz 2.43A |
| Insulation | Class F | |
| Brake | Spring close type electromagnetic brake | |
| Braking rate | 150% or more | |
| Load time rate | S2 30 minutes | |
| Control method | Direct operation by 2-point pushbutton switch (operation cable 2mm2 x 4 cores x 2.5m / power cable 2mm2 x 4 cores x 2.5m) | |
| Own weight | 49.2 kg (108.5lbs) |
Model: BMW-301 Air
| Model | BMW-301 Air | |
|---|---|---|
| Frequency | 50Hz | 60Hz |
| Load Rating | 1st layer: 250kgf (550lbs) 3rd layer: 250kgf (550lbs) 5th layer: 210kgf (460lbs) |
1st layer: 210kgf (460lbs) 3rd layer: 210kgf (460lbs) 5th layer: 170kgf (370lbs) |
| Line Speed | 1st layer: 10.4 m/min (34.1 ft/min) 3rd layer: 13.0 m/min (42.7 ft/min) 5th layer: 15.6 m/min (51.2 ft/min) |
1st layer: 12.6 m/min (41.3 ft/min) 3rd layer: 15.8 m/min (51.8 ft/min) 5th layer: 18.9 m/min (62.0 ft/min) |
| Drum Capacity | 1st layer: φ6mmx11.0m (36.0 ft) 3rd layer: φ6mmx37.3m (122.3ft) 5th layer: φ6mmx69.0m (226.3ft) |
|
| Applicable Wire Rope | φ6mm (6X24) (Japanese Industrial Standards) | |
| Gear Ratio | 40.3 : 1 | |
| Motor type | Totally enclosed external fan type: Three-phase motor | |
| Output | 0.75 kW | |
| Number of poles | 4 P | |
| Voltage / Current | Three-phase AC200V 50Hz 3.91A | Three-phase AC200V 60Hz 3.63A |
| Insulation | Class F | |
| Brake | Spring close type electromagnetic brake | |
| Braking rate | 150% or more | |
| Load time rate | S2 30 minutes | |
| Control method | Direct operation by 2-point pushbutton switch (operation cable 2mm2 x 4 cores x 2.5m / power cable 2mm2 x 4 cores x 2.5m) | |
| Own weight | 48.4 kg (106.7lbs) |
Model: BMW-302 Air
| Model | BMW-302 Air | |
|---|---|---|
| Frequency | 50Hz | 60Hz |
| Load Rating | 1st layer: 400kgf (880lbs) 3rd layer: 400kgf (880lbs) 5th layer: 330kgf (720lbs) |
1st layer: 330kgf (720lbs) 3rd layer: 330kgf (720lbs) 5th layer: 280kgf (610lbs) |
| Line Speed | 1st layer: 6.5 m/min (21.3 ft/min) 3rd layer: 8.1 m/min (26.6 ft/min) 5th layer: 9.8 m/min (32.2 ft/min) |
1st layer: 7.8 m/min (25.6 ft/min) 3rd layer: 9.9 m/min (32.5 ft/min) 5th layer: 11.8 m/min (38.7 ft/min) |
| Drum Capacity | 1st layer: φ6mmx11.0m (36.0 ft) 3rd layer: φ6mmx37.3m (122.3ft) 5th layer: φ6mmx69.0m (226.3ft) |
|
| Applicable Wire Rope | φ6mm (6X24) (Japanese Industrial Standards) | |
| Gear Ratio | 64.5 : 1 | |
| Motor type | Totally enclosed external fan type: Three-phase motor | |
| Output | 0.75 kW | |
| Number of poles | 4 P | |
| Voltage / Current | Three-phase AC200V 50Hz 3.91A | Three-phase AC200V 60Hz 3.63A |
| Insulation | Class F | |
| Brake | Spring close type electromagnetic brake | |
| Braking rate | 150% or more | |
| Load time rate | S2 30 minutes | |
| Control method | Direct operation by 2-point pushbutton switch (operation cable 2mm2 x 4 cores x 2.5m / power cable 2mm2 x 4 cores x 2.5m) | |
| Own weight | 48.7 kg (107.4lbs) |
Model: BMW-303 Air
| Model | BMW-303 Air | |
|---|---|---|
| Frequency | 50Hz | 60Hz |
| Load Rating | 1st layer: 580kgf (1200lbs) 3rd layer: 580kgf (1200lbs) 5th layer: 470kgf (1000lbs) |
1st layer: 480kgf (1000lbs) 3rd layer: 480kgf (1000lbs) 5th layer: 390kgf (850lbs) |
| Line Speed | 1st layer: 4.3 m/min (14.1 ft/min) 3rd layer: 5.7 m/min (18.7 ft/min) 5th layer: 7.2 m/min (23.6 ft/min) |
1st layer: 5.2 m/min (17.1 ft/min) 3rd layer: 6.9 m/min (22.6 ft/min) 5th layer: 8.7 m/min (28.5 ft/min) |
| Drum Capacity | 1st layer: φ8mmx8.5m (27.8 ft) 3rd layer: φ8mmx29.7m (97.4ft) 5th layer: φ8mmx56.6m (185.6ft) |
|
| Applicable Wire Rope | φ8mm (6XFi29) (Japanese Industrial Standards) | |
| Gear Ratio | 99.0 : 1 | |
| Motor type | Totally enclosed external fan type: Three-phase motor | |
| Output | 0.75 kW | |
| Number of poles | 4 P | |
| Voltage / Current | Three-phase AC200V 50Hz 3.91A | Three-phase AC200V 60Hz 3.63A |
| Insulation | Class F | |
| Brake | Spring close type electromagnetic brake | |
| Braking rate | 150% or more | |
| Load time rate | S2 30 minutes | |
| Control method | Direct operation by 2-point pushbutton switch (operation cable 2mm2 x 4 cores x 2.5m / power cable 2mm2 x 4 cores x 2.5m) | |
| Own weight | 50.0 kg (110.2lbs) |
