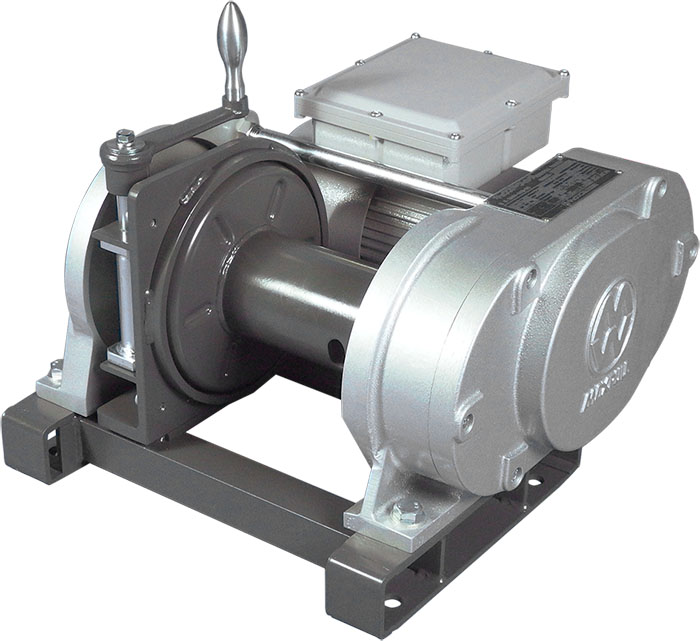

Single-phase 100V with Dog Clutch Electric Winches: Model BMW (Type-SC)

Features of BMW single-phase 100V dog clutch series

This is an electric winch equipped with a dog clutch that is suitable for frequent winding and unwinding of the wire rope.
● With the simple operation of a single lever, the drum can be put in neutral position and the wire rope can be easily pulled out.
● The clutch operation is light, easy and reliable due to the precision design.
● The parallel type, which has two rows of motor and drum sections, is compact and can be installed in a narrow spaces.
● Using a motor equipped with a built-in fan, it can operate for 30 minutes.
● This winch can be used with a single-phase 100V household outlet.

Model: BMW-101-SC / BMW-102-SC / BMW-103-SC



BMW dog clutch series

This is an interlocking winch that is standardized by attaching a clutch to a popular BMW series. The drum can be put in a neutral state simply by operating a single lever. In addition, the clutch operation is light and reliable due to the precision design. Since no rotational load is applied to the motor or reduction gear, the unwinding of the wire can be easily done.

Single-phase 100V type parallel winch

This is an electric winch equipped with an outdoor motor in parallel with the drum. A precisely designed reduction gear provides strong and stable traction. In addition, special heat treatment is applied to the aluminum alloy casting making it a much lighter and smaller than conventional products. It is dust and rust resistent, rain-proof, and can be installed in small spaces. The power supply is single-phase 100V.

● The parallel type, which has two rows of the motor and drum sections, is compact and can be installed in narrow spaces.
● In addition to the outdoor motor, a frame of lightweight and robust aluminum alloy casting is used. It has great design and functionality such as dust and rust resistence, drip-proof and quiet.
● A high-performance electromagnetic brake is used; therefore, the braking power is extremely high making it effective even for delicate work. Even in emergencies such as power outages, the manual brake release device can safely lower a suspended load even if the winch stops working.
● The wire rope can be installed easily and securely by simply passing the wire rope through two wire holes on drum pipe and tightening the fastener.

“4 features” of the single-phase 100V series

“OFF” and “ON” of clutch

Winch usage site & wire turning

When a ship docks at port, the winch can quickly pull the wire rope out for unloading purposes.

PageTop▲

BMW single-phase 100V dog clutch series product list

Introduction to list of products.

Model: BMW-101-SC

Model: BMW-101-SC
Model BMW-101-SC
Frequency 50Hz 60Hz
Load Rating 1st layer: 120kgf (260lbs)
3rd layer: 120kgf (260lbs)
5th layer: 100kgf (220lbs)
1st layer: 100kgf (220lbs)
3rd layer: 100kgf (220lbs)
5th layer: 80kgf (170lbs)
Line Speed 1st layer: 10.2 m/min (33.5 ft/min)
3rd layer: 12.8 m/min (42.0 ft/min)
5th layer: 15.3 m/min (50.2 ft/min)
1st layer: 12.4 m/min (40.7 ft/min)
3rd layer: 15.5 m/min (50.9 ft/min)
5th layer: 18.6 m/min (61.0 ft/min)
Drum Capacity 1st layer: φ6mmx7.0m (22.9 ft)
3rd layer: φ6mmx23.6m (77.4ft)
5th layer: φ6mmx43.8m (143.7ft)

Applicable Wire Rope φ6mm (6X37) (Japanese Industrial Standards)
Gear Ratio 40.3 : 1
Motor type Totally enclosed external fan type: Single-phase motor
Output 0.4 kW
Number of poles 4 P
Voltage / Current Single-phase AC100V 50Hz 8.44A single-phase AC100V 60Hz 8.99A
Insulation Class B
Brake Spring close type electromagnetic brake
Braking rate 150% or more
Load time rate S2 30 minutes
Control method Direct operation by 2-point pushbutton switch (operation cable 2mm2 x 4 cores x 2.5m / power cable 2mm2 x 3 cores x 2.5m)
Own weight 53.9 kg (118.8lbs)

Model: BMW-102-SC

Model: BMW-102-SC
Model BMW-102-SC
Frequency 50Hz 60Hz
Load Rating 1st layer: 195kgf (420lbs)
3rd layer: 195kgf (420lbs)
5th layer: 160kgf (350lbs)
1st layer: 160kgf (350lbs)
3rd layer: 160kgf (350lbs)
5th layer: 130kgf (280lbs)
Line Speed 1st layer: 6.4 m/min (21.0 ft/min)
3rd layer: 8.0 m/min (26.2 ft/min)
5th layer: 9.6 m/min (31.5 ft/min)
1st layer: 7.7 m/min (25.3 ft/min)
3rd layer: 9.7 m/min (31.8 ft/min)
5th layer: 11.6 m/min (38.1 ft/min)
Drum Capacity 1st layer: φ6mmx7.0m (22.9 ft)
3rd layer: φ6mmx23.6m (77.4ft)
5th layer: φ6mmx43.8m (143.7ft)

Applicable Wire Rope φ6mm (6X37) (Japanese Industrial Standards)
Gear Ratio 64.5 : 1
Motor type Totally enclosed external fan type: Single-phase motor
Output 0.4 kW
Number of poles 4 P
Voltage / Current Single-phase AC100V 50Hz 8.44A single-phase AC100V 60Hz 8.99A
Insulation Class B
Brake Spring close type electromagnetic brake
Braking rate 150% or more
load time rate S2 30 minutes
Control method Direct operation by 2-point pushbutton switch (operation cable 2mm2 x 4 cores x 2.5m / power cable 2mm2 x 3 cores x 2.5m)
Own weight 54.2 kg (119.5lbs)

Model: BMW-103-SC

Model: BMW-103-SC
Model BMW-103-SC
Frequency 50Hz 60Hz
Load Rating 1st layer: 300kgf (660lbs)
3rd layer: 300kgf (660lbs)
5th layer: 250kgf (550lbs)
1st layer: 250kgf (550lbs)
3rd layer: 250kgf (550lbs)
5th layer: 200kgf (440lbs)
Line Speed 1st layer: 4.2 m/min (13.8 ft/min)
3rd layer: 5.2 m/min (17.1 ft/min)
5th layer: 6.3 m/min (20.7 ft/min)
1st layer: 5.0 m/min (16.4 ft/min)
3rd layer: 6.3 m/min (20.7 ft/min)
5th layer: 7.6 m/min (24.9 ft/min)
Drum Capacity 1st layer: φ6mmx7.0m (22.9 ft)
3rd layer: φ6mmx23.6m (77.4ft)
5th layer: φ6mmx43.8m (143.7ft)

Applicable Wire Rope φ6mm (6X37) (Japanese Industrial Standards)
Gear Ratio 99.0 : 1
Motor type Totally enclosed external fan type: Single-phase motor
Output 0.4 kW
Number of poles 4 P
Voltage / Current Single-phase AC100V 50Hz 8.44A single-phase AC100V 60Hz 8.99A
Insulation Class B
Brake Spring close type electromagnetic brake
Braking rate 150% or more
Load time rate S2 30 minutes
Control method Direct operation by 2-point pushbutton switch (operation cable 2mm2 x 4 cores x 2.5m / power cable 2mm2 x 3 cores x 2.5m)
Own weight 55.5 kg (122.4lbs)
