Reciprocating Traction Endless Manual Winches: Model ME (Type-B,-L)

Features of reciprocating traction endless manual winch ME series

This is a reciprocating traction manual winch where the world’s first two drums system is used. Unlike the capstan drum, this revolutionary winch can be used not only for horizontal pulling, but also for vertical lifting. Two types of brake systems are incorporated for vertical lifting and horizontal pulling.

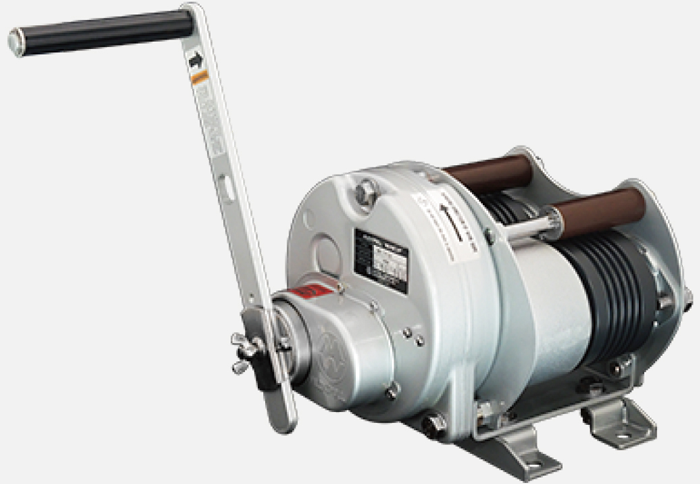

Model: ME-5-SI-B / ME-10-SI-B / ME-5-L / ME-10-L

RoHSマーク

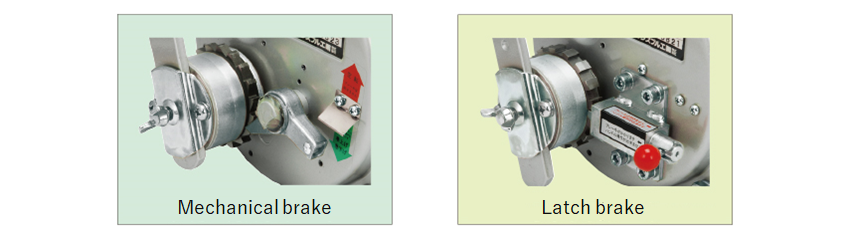

Two types of brake systems

The mechanical brake functions in one direction by operating the handle, which is suitable for vertical lifting. The latch brake keeps the wire rope in both winding and unwinding directions when the brake functions, which is suitable for horizontal pulling.
*Do not use latch type brake for lifting loads vertically.

How to set the wire rope

The side frame is detachable. When the side frame is detached, the winch is cantilevered and the wire rope can easily be wound around the drum from any point of the wire rope.

It is not necessary to keep tension

Stable reciprocating traction force and resistance to wire rope looseness are realized by one main unit because of the two drums that simultaneously rotate in the same direction with special wire grooves and the wire retaining roller installed on each drum. Therefore, it is not necessary to keep the tension of drum and wire rope like capstan winch.

MAXPULL’s original grooved two drums and general capstan drum

Simple operation

As the machine efficiency is high, the hand load during operation is very light compared to that of competitors’ winches and you can carry out the work easily. This winch has a compact design with minimal weight and very convenient to carry or move. In addition, the main unit can be easily attached using predefined bolts. Another major feature is that each part is made by press processing, and the whole winch is assembled with bolts, so it can be easily disassembled. If a repair is necessary, anyone can easily repair and assemble the winch by following the instruction manual and purchasing the parts.

Exceptional durability

Ball bearings from leading manufacturers are used for all of our winch products. These ball bearings make the winding process light and exhibit outstanding strength against wear. For the reducer, our company’s custom designed heat treated gear uses an unique transposition method to allow the user to work with ease. The mechanical brake also has a mechanism that freely adjusts the gap so it is extremely durable. All surfaces are painted and treated which makes the winch resistant to rust with unrivaled durability in any working environment.

Reliable safety

This winch is extremely safe because of carefully selected material parts, advanced design and technology. Especially for the parts where the load is applied in a concentrated manner, the strength is increased further by combining ribs or double plates made by precision press processing. In addition, independent parallel grooves are carved onto two drums, so the structure where wire ropes do not touch each other is ensured and wire ropes do not come into contact with each other and damage the wires. MAXPULL’s original highly reliable safety design is ensured for all items.

Examples of stage of ME series

Examples of ME series usage site



PageTop▲

Reciprocating traction endless manual winch ME series product list

Introduction to list of products.

Model: ME-5-SI-B : 500kgf (1,100lbs) mechanical brake type

Model: ME-5-SI-B : 500kgf (1,100lbs) mechanical brake type
Model ME-5-SI-B
Load Rating 500kgf (1,100lbs)
Wire Rope Diameter φ6mm (6×37)
(1/4inch (6×36))
Winding Wire Rope 4 Wraps
Gear Ratio 13.3 : 1
Handle Force 9.9kgf (21.8lbs)
Handle Length (Effective Maximum) 250mm (9.84inch)
Weight (Main unit + Handle) 30.0 kg (66.1lbs)

Model: ME-10-SI-B : 1,000kgf (2,200lbs) mechanical brake type

Model: ME-10-SI-B : 1,000kgf (2,200lbs) mechanical brake type
Model ME-10-SI-B : 1,000kgf (2,200lbs)
Load Rating 1000kgf (2,200lbs)
Wire Rope Diameter φ8mm (6×37)
(5/16inch (6×36))
Winding Wire Rope 4 Wraps
Gear Ratio 19 : 1
Handle Force 11.6kgf (25.6lbs)
Handle Length (Effective Maximum) 300mm (11.81inch)
Weight (Main unit + Handle) 30.0 kg (66.1lbs)

Model: ME-5-L : 500kgf (1,100lbs) latch brake type

Model: ME-5-L : 500kgf (1,100lbs) latch brake type
Model ME-5-L
Load Rating 500kgf (1,100lbs)
Wire Rope Diameter φ6mm (6×37)
(1/4inch (6×36))
Winding Wire Rope 4 Wraps
Gear Ratio 13.3 : 1
Handle Force 9.9kgf (21.8lbs)
Handle Length (Effective Maximum) 250mm (9.84inch)
Weight (Main unit + Handle) 30.0 kg (66.1lbs)

Model: ME-10-L : 1,000kgf (2,200lbs) latch brake type

Model: ME-10-L : 1,000kgf (2,200lbs) latch brake type
Model ME-10-L : 1,000kgf (2,200lbs)
Load Rating 1,000kgf (2,200lbs)
Wire Rope Diameter φ8mm (6×37)
(5/16inch (6×36))
Winding Wire Rope 4 Wraps
Gear Ratio 19 : 1
Handle Force 11.6kgf (25.6lbs)
Handle Length (Effective Maximum) 300mm (11.81inch)
Weight (Main unit + Handle) 30.0 kg (66.1lbs)
