  4. Large Industrial Manual Winches: Model GM

Large Industrial Manual Winches: Model GM

Features of large industrial manual winch series

GM-50_GM-100

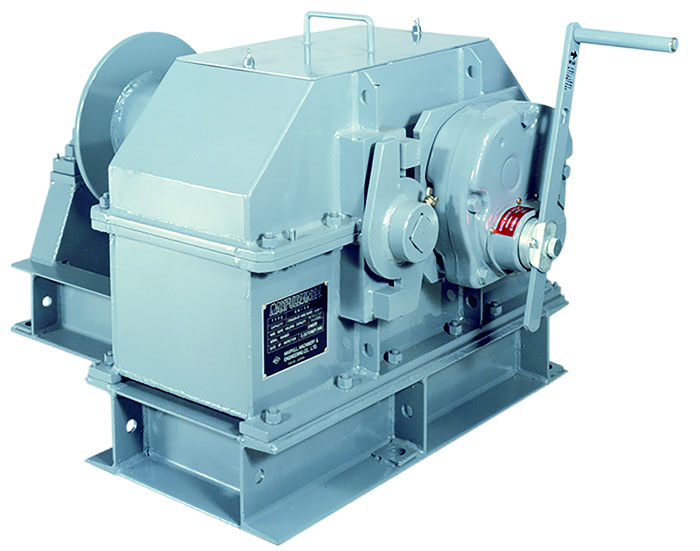

This is a large industrial manual winch unparallel in the world. Two models with tensile force of 5 tons and 10 tons are available. This series is suitable for ship vessels, large mechanical equipment, maintenance of industrial plants, lifting of floodgates, and emergency power during power outage or disaster.

Model: GM-50 / GM-100



PageTop▲

Large industrial manual winch product list

Introduction to list of products.

Model: GM-50 : 5,000kgf (11,000lbs)

Model: GM-50 : 5,000kgf (11,000lbs)
Model GM-50
Load Rating 5,000kgf(11,000lbs) 3rd Layers or Less
Drum Capacity 4-Layers Winding
φ16mm (6×37) x 52m
Length of Winding per Rotation 6.3mm (0.25inch)
Gear Ratio 145 : 1
Handle Force 1st Layer : 12.1kgf (26.7lbs)
3rd Layer:16.3kgf (35.9lbs)
Handle Length (Effective Maximum) 370mm (14.57inch)
Weight (Main unit + Handle) Approx. 400 kg (882lbs)

Model: GM-100 : 10,000kgf (22,000lbs)

Model: GM-100 : 10,000kgf (22,000lbs)
Model GM-100
Load Rating 10,000kgf(22,000lbs) 3rd Layers or Less
Drum Capacity 3-Layers Winding
φ20mm (6×37) x 55m
Length of Winding per Rotation 3.4mm (0.13inch)
Gear Ratio 320 : 1
Handle Force 1st Layer : 14.3kgf (31.5bs)
3rd Layer:19.1kgf (42.1lbs)
Handle Length (Effective Maximum) 370mm (14.57inch)
Weight (Main unit + Handle) Approx. 750 kg (1653lbs)



PageTop▲
